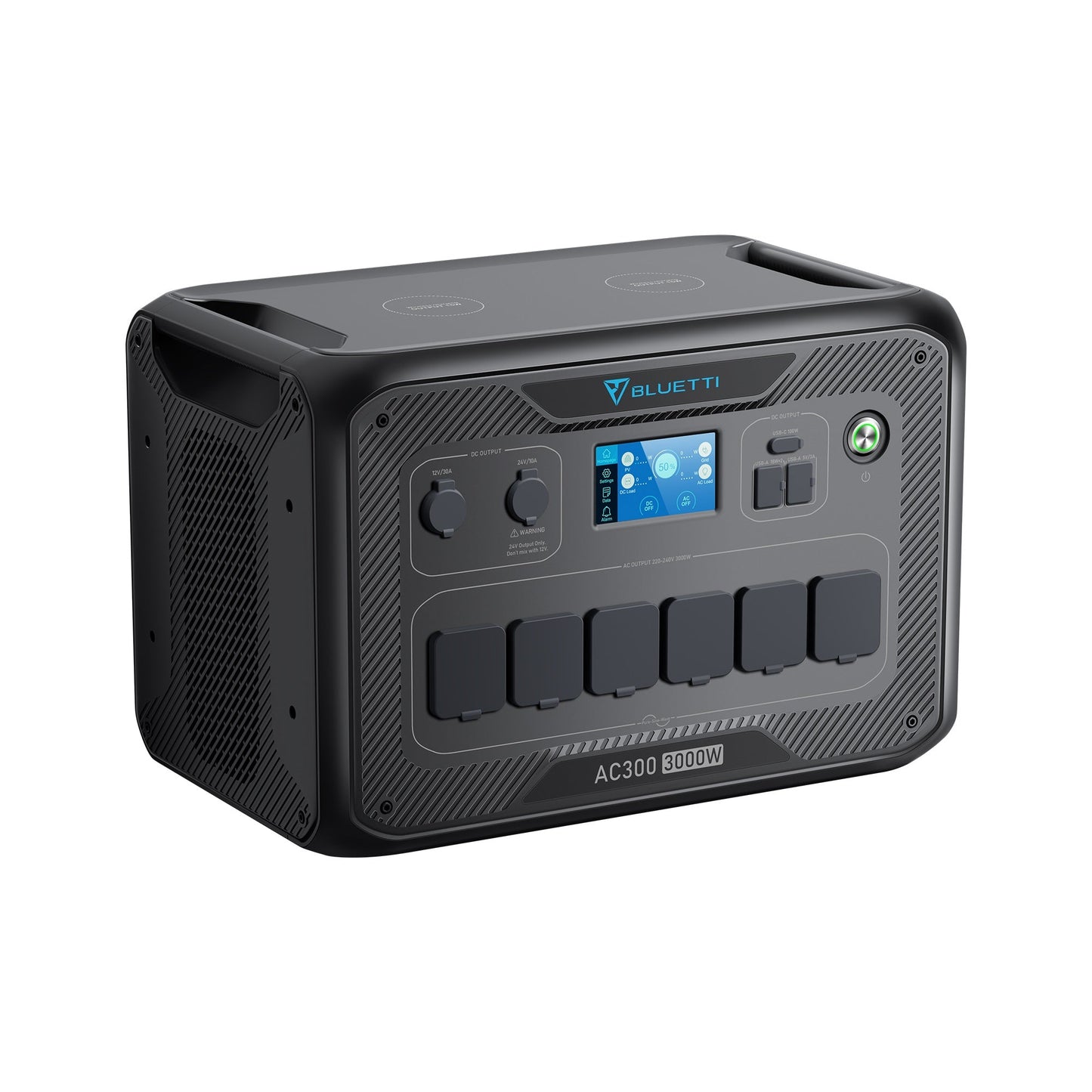

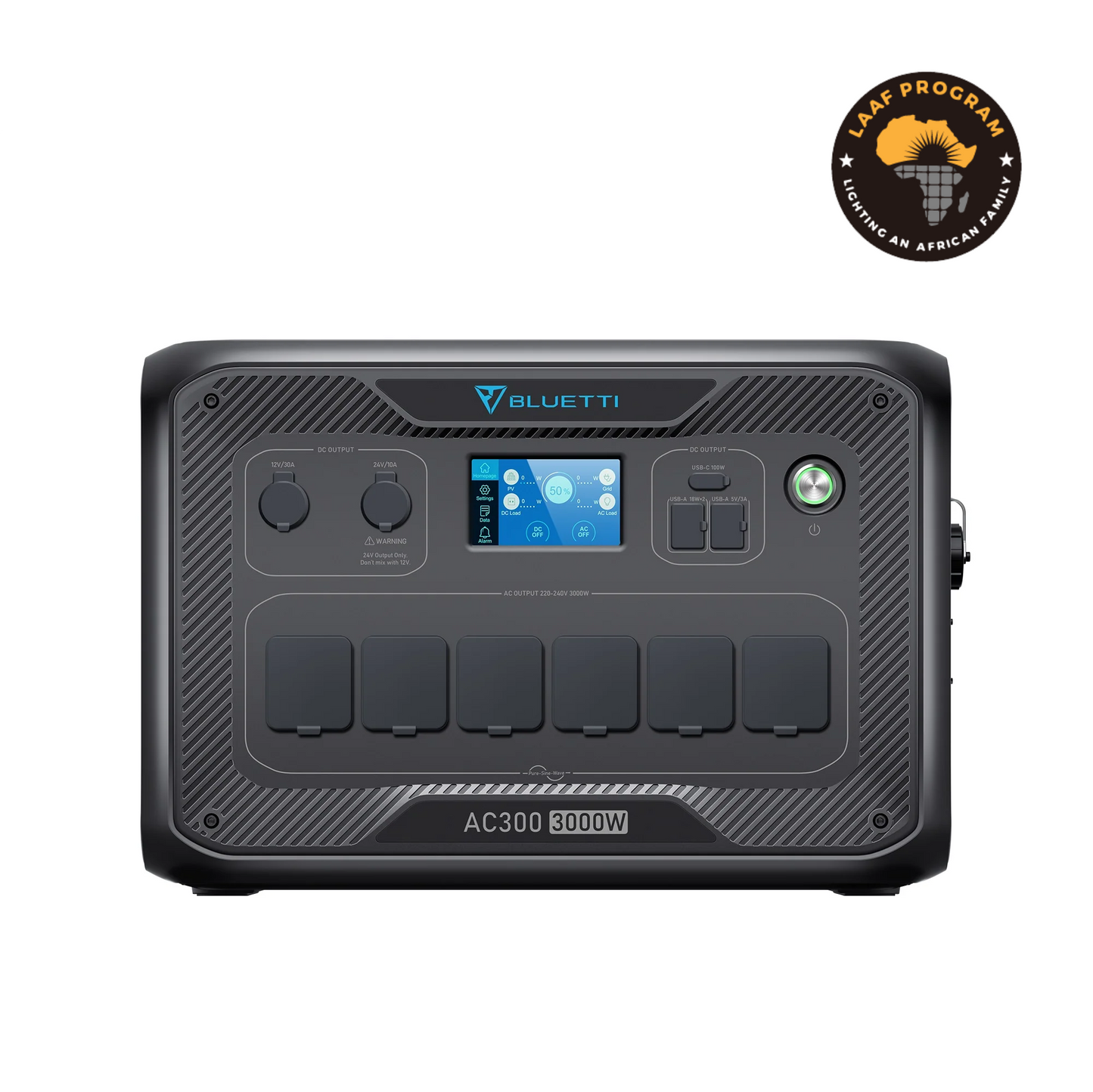

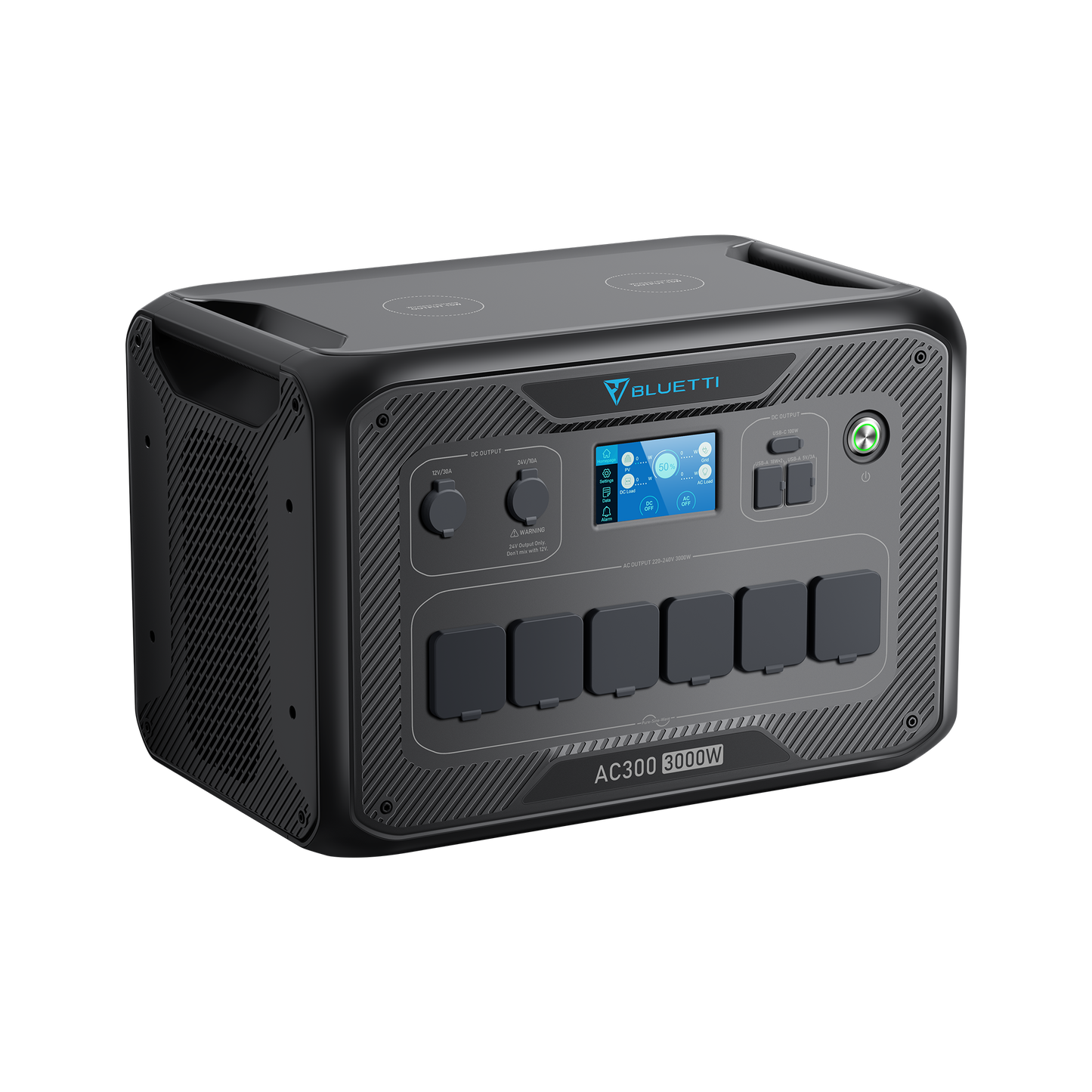

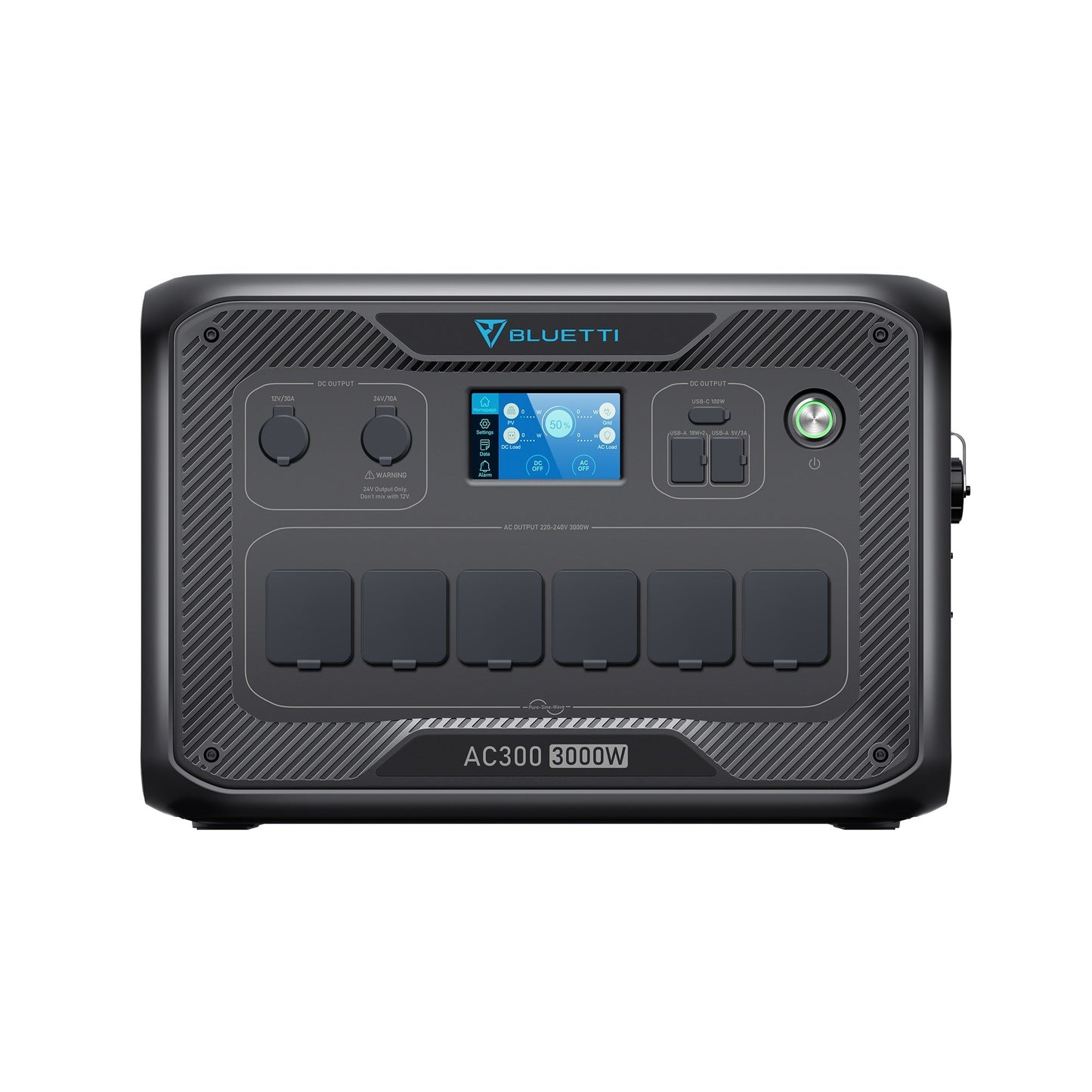

BLUETTI AC300 Inverter Module Generator | 3,000W

BLUETTI AC300 Inverter Module Generator | 3,000W (Requires The B300 To Work)

Features

• 3,000W AC Pure Sine Wave Inverter (6,000W Surge)
• 3,072Wh Capacity (Expandable w/ up to 4 × B300 for 12,288Wh)
• 7 Ways to Recharge (AC/Solar/Car/Generator/Lead battery/Dual AC/AC+Solar)
• 2400W Max. Solar Input
• 5400W Max. Fast Dual Charging (Solar + AC Adapter Simultaneously)
• Smart App Control & Monitor
• 24/7 UPS Home Backup


Expand Your Power At Will

The BLUETTI AC300 is completely modular and can accommodate up to four B300 battery modules (each with a capacity of 3,072Wh), resulting in an impressive total capacity of 12,288Wh! This setup can power essential household needs for days during emergencies or power outages.

2400W Unrivaled Solar Input

Get ready to embrace a full-time solar lifestyle! The BLUETTI AC300 now supports an impressive solar charging input of 2,400 watts. Thanks to BLUETTI’s state-of-the-art MPPT controller, you can charge a B300 (3,072Wh) battery module in just 1.5 hours. All you need is sunlight!

3000W Pure Sine Wave Inverter

Equipped with a 3000-watt pure sine wave inverter, the AC300 power system allows you to modify the AC charging rate without requiring a power brick—one charging cable is sufficient. It can be charged through wall outlets at a rate ranging from 1800W to 3000W, depending on your requirements.

5400W Blazing Input Rate

Waiting for a recharge can be quite frustrating. The AC300 offers a staggering total input rate of up to 5400W* when both the wall outlet and solar panels are connected. To ensure your power is ready when you are, simply plug in the system before you head out for camping. *This 5,400W input rate combines 2,400W from solar and 3,000W from AC, necessitating at least two B300 battery packs. If you use only one B300, the input rate will be limited to 3,000W.

Everything You Want, In One

Keep your home powered during outages with ease. Simply set it up and turn it on!

4 Years Worry-Free Warranty

Our dedication to your peace of mind is what motivates us to strive for excellence. That’s why each AC300 and B300 includes a 4-year extended warranty.

Tech Specs

PREVIEW

BATTERY INFO

Capacity: Work with B300's / B300K's, start at 3072Wh
Cell Chemistry: Lithium Iron Phosphate(LiFePO₄)
Lifecycle: 3500+(to 80%),6000+(to 50%)
Management System: MPPT Controller, BMS, etc

OUTPUT

AC Outlets: 6x 220V-240V, 3,000W In Total
Inverter Type: Pure Sine Wave
Surge Power: 6000W
USB-C Port: 1 x 100W Max.
USB-A Port: 2 x 5V/3A USB-A, 2 x 18W USB-A
12V* DC Outlets: 1 x 12V/30A (RV Outlet), 1 x 24V/10A (Car Outlet) *All Regulated.
Wireless Charging Pad: 2 x 15W Max. (For Each)

INPUT

AC Charging Cable Input: 3,000W Max.
Solar Input: 2,400W Max., VOC 12-150VDC, 12A
Car Input: 12/24V from Cigarette Lighter Port
Max Input: 5,400W, with AC and Solar Input Simultaneously

GENERAL

App Control: Yes, Wifi & Bluetooth
Scalability: Expandable W/Up to 4 x B300 / 4 x B300K
Simultaneous Recharge & Discharge: Yes
Weight: 47.6lbs (21.6kg)
Dimensions (LxWxD): 20.5 x 12.5 x 14.1in ( 52 x 32 x 35.80cm)
Operating Usage Temperature: -4-104℉ (-20-40℃)
Storage Temperature: -4-104℉ (-20-40℃)
Certification: UL2743, UKCA, TELEC, RCM, FCC ID, CE
Warranty: 4 Years

IN THE BOX

Downloads

BLUETTI AC300 Inverter Module Generator | 3,000W Manual

FAQ

Q1: How many B300 battery modules can connect with AC300?

A: Up to 4. Friendly Note: which means that if the total power of your devices exceeds 700W.

Q2: Do AC300 and B300 support Hot Swapping?

A: Yes.

Q3: How many B230 battery modules can connect with AC300?

A: No, AC300 ONLY accepts B300 battery modules.

Q4: Can AC300 be remotely controlled by App?

A: Yes. Once connected via WiFi or Bluetooth, the BLUETTI App will enable you to control the AC300+B300 remotely like switching the working mode and upgrading the firmware.

Q5: How to recharge AC300 rapidly?

A: AC 300 is a non-battery inverter. It only has power when it is connected to B300. Recharge this unit through the Input charger of AC300 with the wall outlet and solar panels at the same time, then you will get a maximum 5,400W input.

Q6:Does AC300 have UPS function?

A: Yes. It supports 4 UPS modes:

1.Standard UPS

2.Time Control UPS(Pay less for higher electricity consumption)

3.PV Priority UPS(Recommended for regions with sufficient solar energy)

4.Customized UPS.

Q7: What is the UPS switching time?

A: There are two types of working conditions of UPS for AC300 system.

1. No delay for online UPS;

2. 20ms from standby UPS.

Q8: How do I connect this unit to my home main panel?

A: BLUETTI recommends a competent and trained licensed electrician undertake the task. Connect the wires of critical equipment from your house electric panel to BLUETTI AC300 directly.

Q9: Can I use third-party solar panels to charge the AC300 system?

A: Yes, if the solar panels' specs fall in

1. Total Voltage: 12-150V

2. Total Power: 2,400W Max. (From the two PV input ports)

3. Include MC4 connectors.
